Chase Bays Thermostatic Remote Oil Filter Adapter

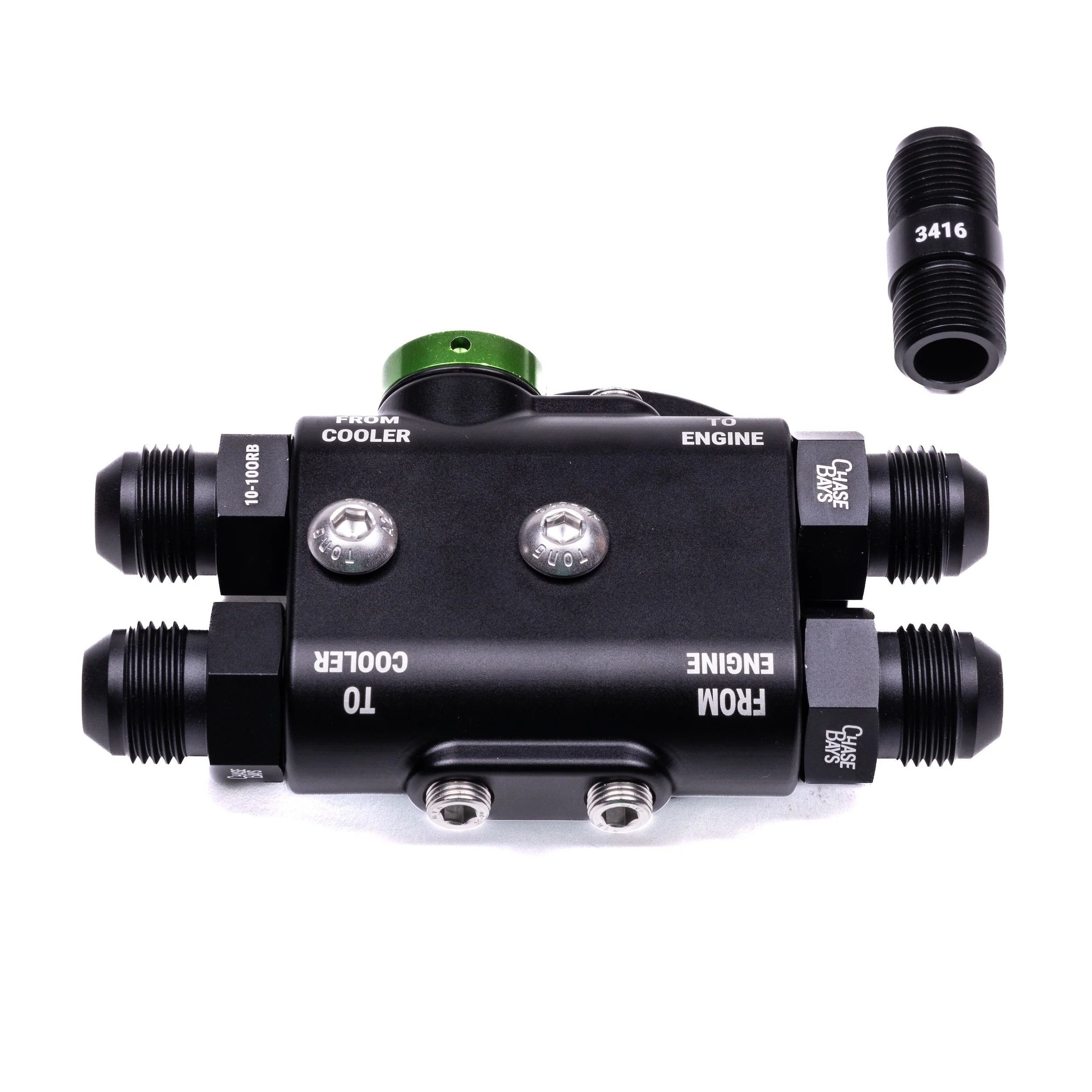

The Chase Bays Thermostatic Remote Oil Filter Adapter was designed to adapt a 180º F / 82º C thermostat and oil filter relocation in a high-flow pressure lossless, reliable, lightweight, compact, and aesthetically pleasing design. It's key features are:

• Innovative self-contained 180ºF thermostatic oil valve
• 3/4-16 oil filter threads
• 10AN ORB ports with 10AN adapters
• X Profile Buna O-Ring seal
• High flow internals for zero pressure loss
• Two 1/8 NPT accessory ports (plugs included)
• (2) M8x1.25 threaded holes for mounting
• Machined from 6061 Aluminum and bead blasted for smooth finish
• Anodized UV-proof signature Chase Bays MIL-A-8625 Type II semi-gloss black with logo laser etched on the side

The built-in thermostatic oil valve allows vehicle to warm up to operating temperature before sending oil through to an oil cooler. Without this the vehicle can take 20+ minutes to warm up and that's of course, bad for the engine!

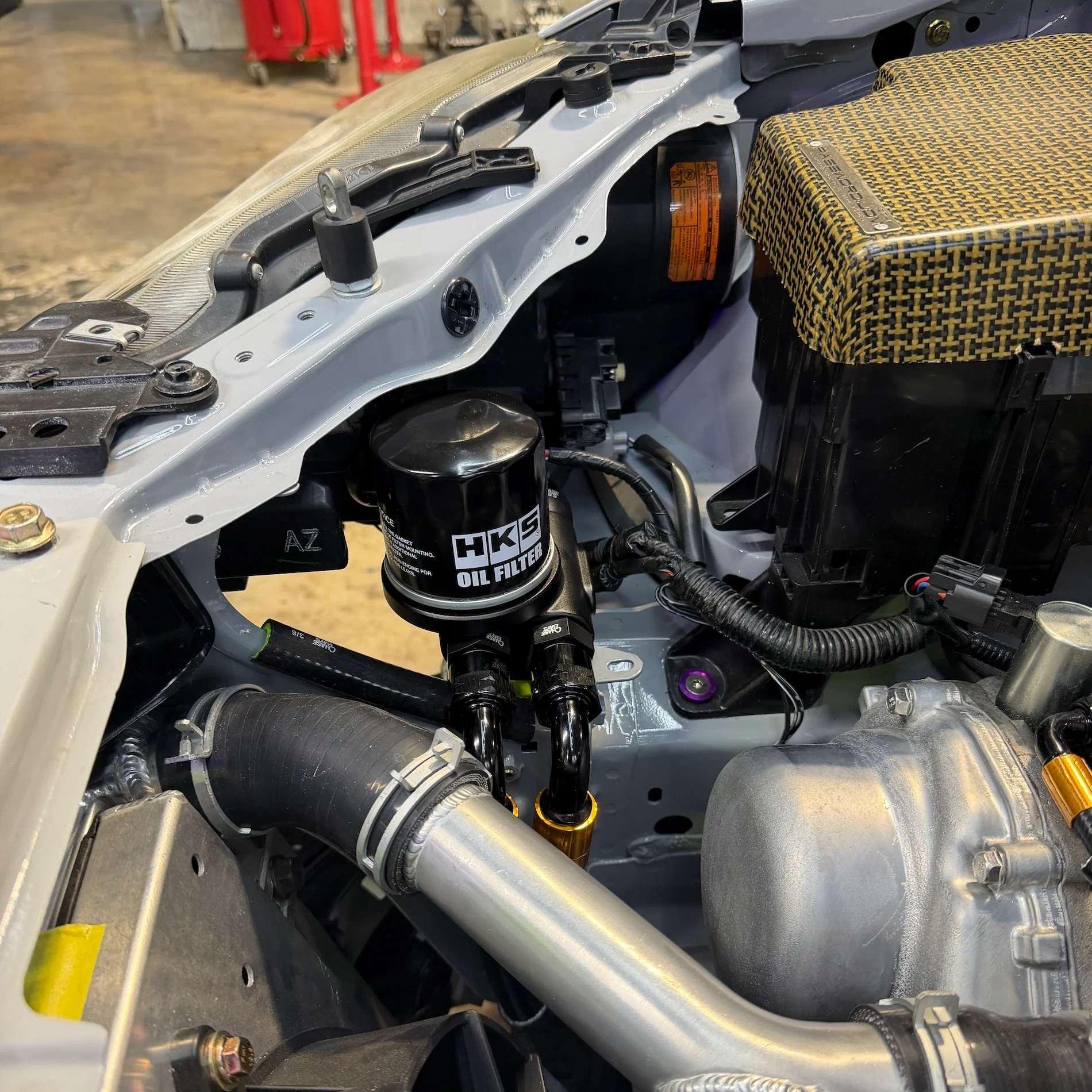

This uses a 3/4-16 thread oil filter which can be cross referenced to hundreds of applications, such as 93-98 Toyota Supra. We use an HKS 52009-AK007 Oil Filter on all of our builds which oversizes to 80mm height.

Oil Filter Sealing Surface Minimum ID: 54mm
Oil Filter Sealing Surface Maximum OD: 74mm

Chase Bays 19 & 25 Row Oil Coolers

NOTE:

- Thread Sealant must be applied to NPT threaded ports when installing a plug or sensor.
