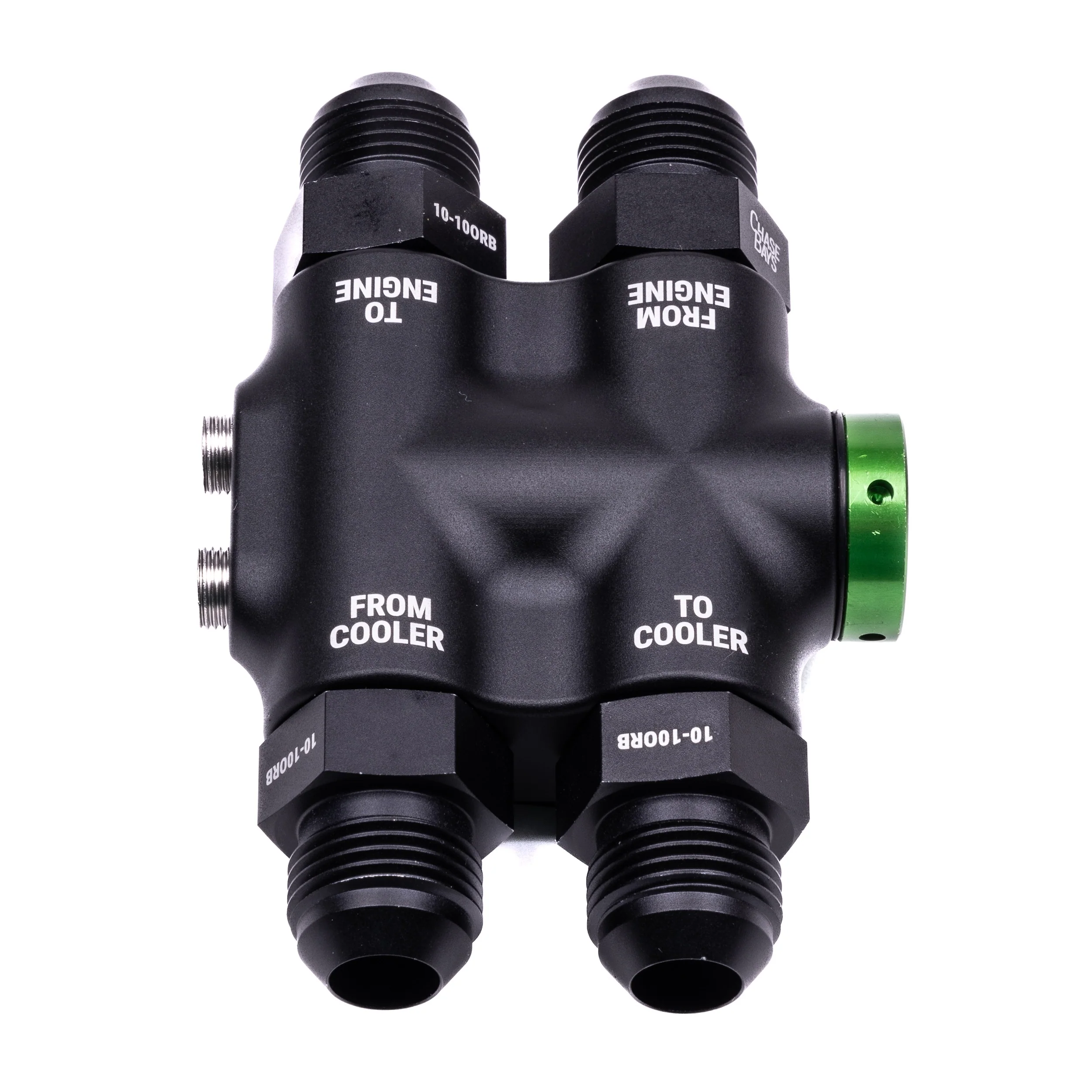

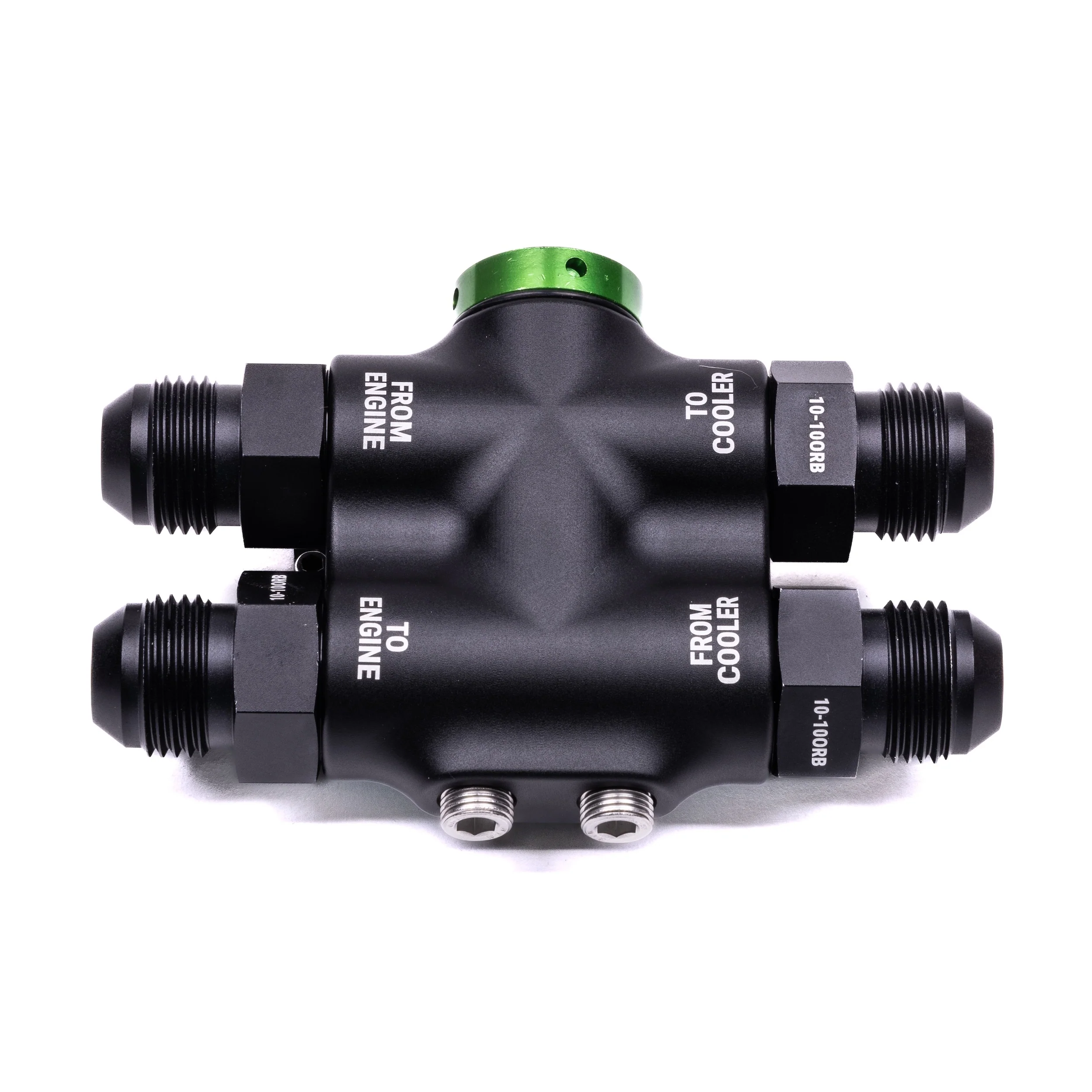

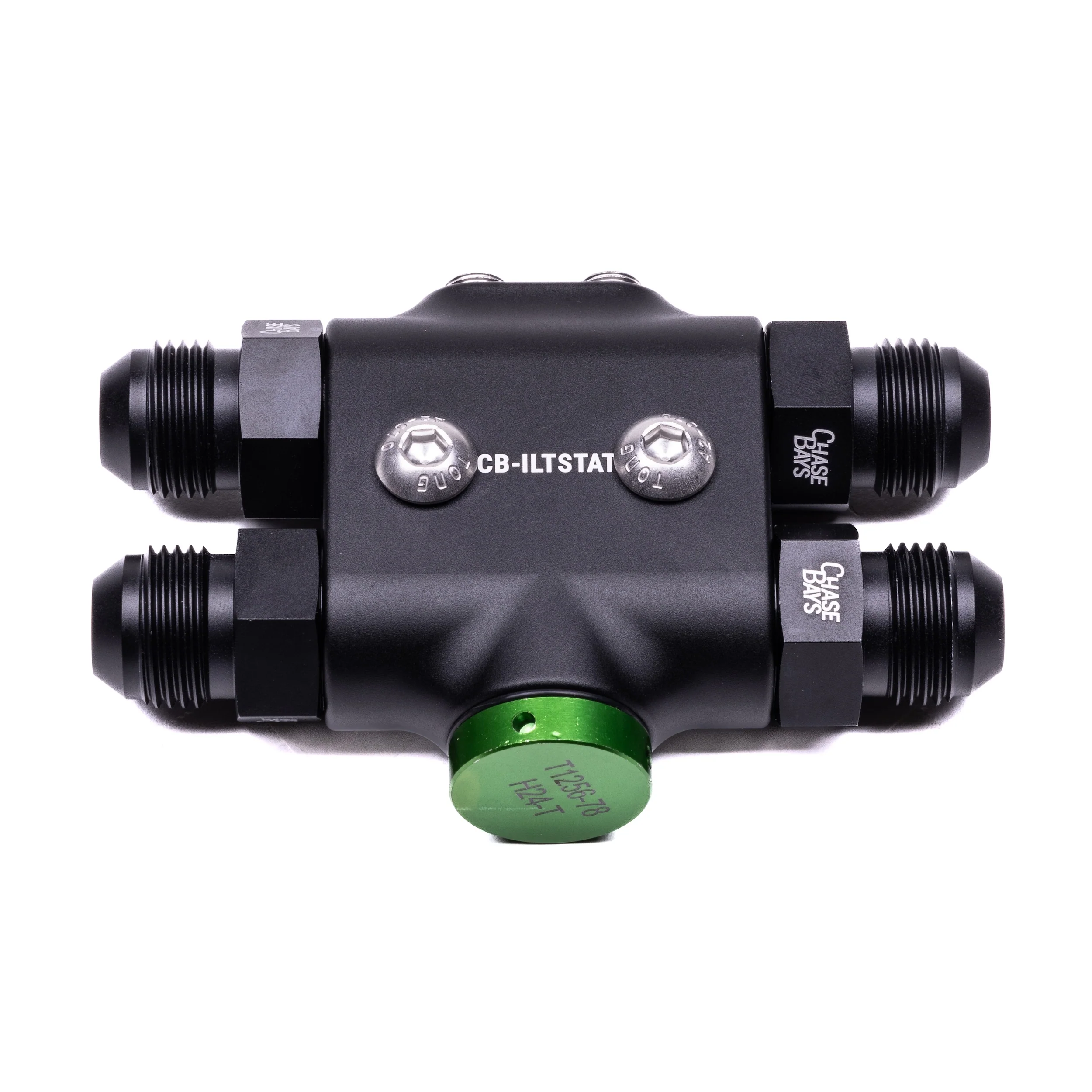

Chase Bays Remote Thermostatic Oil Cooler Adapter
The Chase Bays 10AN Remote Thermostatic Oil Cooler Adapter was designed to adapt a 180º F / 82º C thermostat and oil cooler onto engines with built-in oil filters and oil inlet / outlets. IE: 13B / 20B Rotary Engines. All in a high-flow pressure lossless, reliable, lightweight, compact, and aesthetically pleasing design. It's key features are:
• Innovative self-contained 180ºF thermostatic oil valve
• 10AN ORB Ports with 10AN Adapters
• High flow internals for zero pressure loss
• Two 1/8 NPT accessory ports (plugs included)
• (2) M8x1.25 threaded holes for mounting
• Machined from 6061 Aluminum and bead blasted for smooth finish
• Anodized UV-proof signature Chase Bays MIL-A-8625 Type II semi-gloss black with logo laser etched on the side
The built-in thermostatic oil valve allows vehicle to warm up to operating temperature before sending oil through to an oil cooler. Without this the vehicle can take 20+ minutes to warm up and that's of course, bad for the engine!
Chase Bays 19 & 25 Row Oil Coolers
NOTE:
- Thread Sealant must be applied to NPT threaded ports when installing a plug or sensor.
Original: $219.99
-70%$219.99
$66.00More Images
Chase Bays Remote Thermostatic Oil Cooler Adapter
The Chase Bays 10AN Remote Thermostatic Oil Cooler Adapter was designed to adapt a 180º F / 82º C thermostat and oil cooler onto engines with built-in oil filters and oil inlet / outlets. IE: 13B / 20B Rotary Engines. All in a high-flow pressure lossless, reliable, lightweight, compact, and aesthetically pleasing design. It's key features are:
• Innovative self-contained 180ºF thermostatic oil valve
• 10AN ORB Ports with 10AN Adapters
• High flow internals for zero pressure loss
• Two 1/8 NPT accessory ports (plugs included)
• (2) M8x1.25 threaded holes for mounting
• Machined from 6061 Aluminum and bead blasted for smooth finish
• Anodized UV-proof signature Chase Bays MIL-A-8625 Type II semi-gloss black with logo laser etched on the side
The built-in thermostatic oil valve allows vehicle to warm up to operating temperature before sending oil through to an oil cooler. Without this the vehicle can take 20+ minutes to warm up and that's of course, bad for the engine!
Chase Bays 19 & 25 Row Oil Coolers
NOTE:
- Thread Sealant must be applied to NPT threaded ports when installing a plug or sensor.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Chase Bays 10AN Remote Thermostatic Oil Cooler Adapter was designed to adapt a 180º F / 82º C thermostat and oil cooler onto engines with built-in oil filters and oil inlet / outlets. IE: 13B / 20B Rotary Engines. All in a high-flow pressure lossless, reliable, lightweight, compact, and aesthetically pleasing design. It's key features are:
• Innovative self-contained 180ºF thermostatic oil valve
• 10AN ORB Ports with 10AN Adapters
• High flow internals for zero pressure loss
• Two 1/8 NPT accessory ports (plugs included)
• (2) M8x1.25 threaded holes for mounting
• Machined from 6061 Aluminum and bead blasted for smooth finish
• Anodized UV-proof signature Chase Bays MIL-A-8625 Type II semi-gloss black with logo laser etched on the side
The built-in thermostatic oil valve allows vehicle to warm up to operating temperature before sending oil through to an oil cooler. Without this the vehicle can take 20+ minutes to warm up and that's of course, bad for the engine!
Chase Bays 19 & 25 Row Oil Coolers
NOTE:
- Thread Sealant must be applied to NPT threaded ports when installing a plug or sensor.
